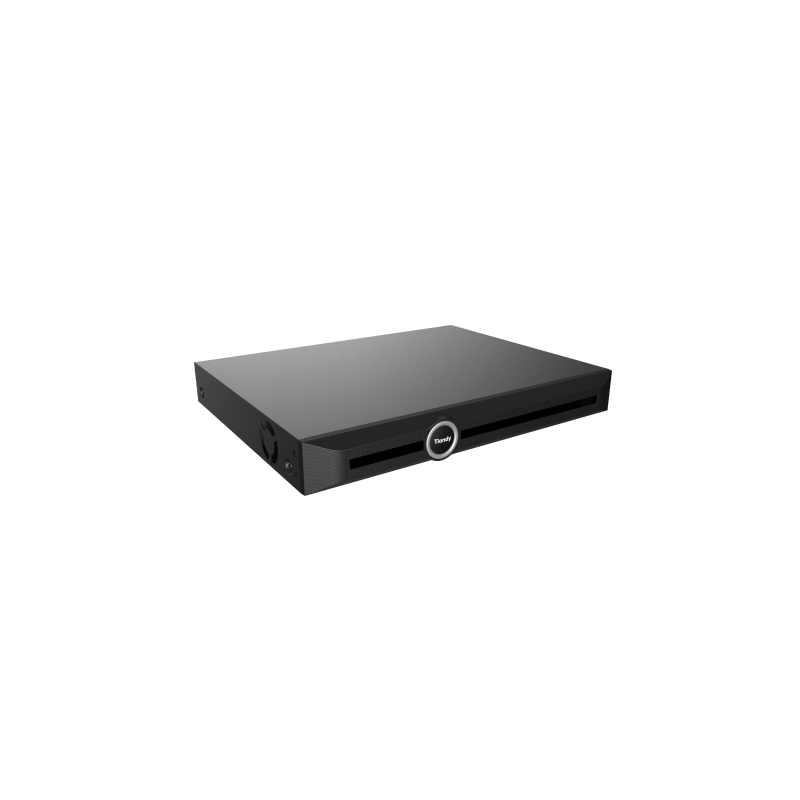

Tiandy NVR 40 Channels , 16MP, SMD+Perimeter+Face, Alarm 16IN/4RelèOUT with 10TB HD Slot mod. TC-R3240 Spec: I/B/N/H/4.1
€385.00
Tax included
VAT not applicable (Flat-rate scheme)
The Tiandy TC-R3240 40‑channel NVR delivers powerful, reliable video management for demanding surveillance setups. Record in crisp up to 16MP resolution and add smarter protection with perimeter detection, face recognition, and SMD+ filtering to reduce unwanted alerts. With 16 alarm inputs and 4 relay outputs, it integrates smoothly with sensors and access control. The hard‑drive slots support up to 10TB for extended storage, making this Tiandy recorder a strong choice for homes, offices, and larger sites.
Security policy
Secure checkout (SSL) and trusted payment methods. Your data is protected and processed securely.
Delivery policy
Free standard shipping on orders of €100 or more. Tracking information is provided when available.
Return policy
14-day right of withdrawal for consumers, where provided by applicable law.
6971849729510
100 Items
Data sheet
- Security Systems Area
- NVR
- Hard Disk Slot Capacity
- 2 x up to 10TB
- Compression Format
- H.265+
- HDMI and VGA
- Simultaneous HDMI and VGA
- Resolution in MP
- 16MP
- Maximum NVR Resolution
- Max I/O video bandwidth: 400Mbps/400Mbps
- RJ-45
- 2
Specific References
- EAN13
- 6971849729510
New
Recensioni prodotto
Non ci sono ancora recensioni approvate per questo prodotto.
Scrivi una recensione
Accedi al tuo account per lasciare una recensione.
40-Channel NVR, 16MP, H.265+, 400Mbps, SMD + Perimeter Protection + Face Detection, 2 HDDs (max 10TB each), Alarm 16 In/4 Relay Out, Audio 1 In/1 Out, HDMI/VGA
Supports cameras with AI functions such as SMD, line crossing, intrusion, video detection, and face detection.
Max video I/O bandwidth: 400Mbps/400Mbps
Max recording resolution: 16MP
Live decoding capacity: 16MP(30fps)×2, 12MP(30fps)×3, 8MP(30fps)×4, 6MP(30fps)×4, 5MP(30fps)×6, 4MP(30fps)×8, 3MP(30fps)×9, 1080P(30fps)×16, 720P(30fps)×32, 4CIF(30fps)×40
Playback decoding capacity: 16MP(30fps)×2, 12MP(30fps)×3, 8MP(30fps)×4, 6MP(30fps)×4, 5MP(30fps)×6, 4MP(30fps)×8, 3MP(30fps)×9, 1080P(30fps)×16, 720P(30fps)×16
Video outputs: 1 HDMI (4K) and 1 VGA (simultaneous)
Audio terminals: 1 x 3.5mm jack input and 1 x RCA output
Alarm terminals: 16 inputs and 4 NO/NC relay outputs (max 24VDC 1A)
Software: EasyLive PLus (Android and iOS) and Easy7 VMS (Windows and MAC)
Hard Drive: 2 HDD max 10TB
USB: 1xUSB 2.0 1xUSB 3.0
Network: 2×RJ-45, 10/100/1000 Mbps
Other interfaces: 1×RS232, 1×RS485
/>Power supply: 12Vdc 3.3A

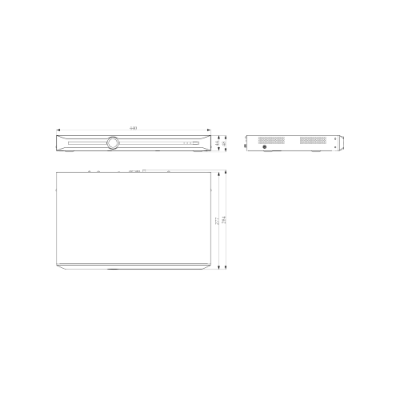

Dimensions: 440x277x47.5mm
